Tutorial How To Flash The Trinket M0 Using Arduino

• Thread starter M-O-B
• Start date Jun 25, 2018
• Views 31,265
• Replies 107
• Likes 13

• #1

Arduino Setup For Use With The Trinket M0 Switch D-I-Y Dongle..

Step 1)

Install The Arduino-1.8.5 Software & Adafruit_Drivers_2.2.0.0

Step 2)

Once Both Are Installed Run The Arduino Software & Goto Flies,Scroll Down To Preferences Tab, Settings Pops Up Go Down To Additional Boards Manager URLs And Click The Box On The Right Of The Blank Space.

Step 3)

The Additional Boards Manager URL Box Will Pop Up, Now Copy & Paste This URL Into The Box, (CTRL+V) To Paste https://adafruit.github.io/arduino-board-index/package_adafruit_index.json Into The Box Then Press Ok & Ok Again.

Step 4)

Now Goto The Tools Tab & Scroll to Board & Select Board Manager Once The Board Manager Pops Up, Type Trinket In The Search Bar Then Click On Adafruit SAMD Boards by Adafruit & Click On Install, Once The Install Has Completed Then Click On The Close Tab.

Step 5)

Now Close Arduino Software & Goto C:\Program Files (x86)\Arduino\examples Folder & Place The 12.Nintendo_Switch_Fusee_Launcher Folder Into The Examples Folder,Once Thats Done You Can Close Everything.

Step 6)

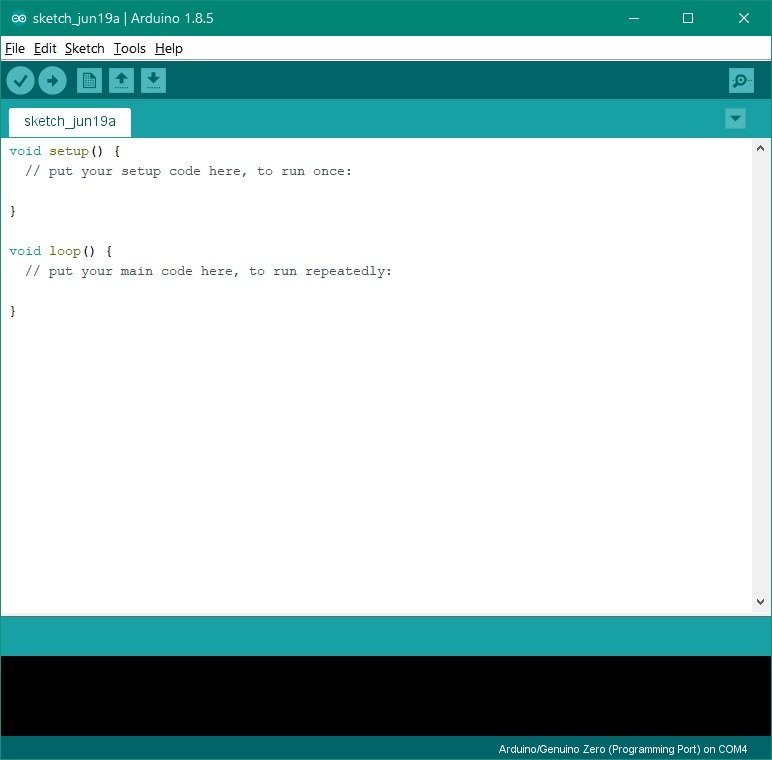

Now Your All Set To Flash Any One Of The Payloads To The Trinket M0 Dongle, So Restart The Arduino Software & Goto Tools Then Scroll Down To Board & Locate The Adafruit Trinket M0 Board & Select It, You Should See Adafruit Trinket M0 on Com4 or A Different Number Com Port In Bottom Right Corner.

Step 7)
Now Plug In Your Trinket M0 Then Goto Tools Again & Scroll Down To Port & Select The Port That The Trinket M0 Is Contected To, If Unsure Then Goto Device Manager Then Ports(COM & LPT) & It'll Show The Trinket M0 & COM Number It's Connected To.

Step 8)
Now Goto File & Scroll Down To Examples Then Scroll To 12.Nintendo_Switch_Fusee_Launcher & Select One Of The Payloads You Want To Flash To The Trinket.

Step 9)
Now The Payload Of Your Choice Pops Up & Your Ready To Go.

Step 10)
You Want To Compile The Sketch Ready To Flash & Make Sure No Issues Before You Flash, Just Click On The Tick.

Step 11)
Now Compiling Is Done Your Ready To Flash To The Trinket M0, So Click On The Arrow Tab To Upload To The Trinket & Wait For The Flash To Complete, You Should See Upload Done Message Once That Is Shown Then You Can Remove The Trinket From Your Pc Or Laptop.

Final Step)
If All Went Well Then Your Ready To Use Your New D-I-Y Trinket M0 Dongle.
Make Sure You Have The Correct Sd Card Files For The Payload That You Flashed To The Trinket.

If You Get This Error When Trying To Upload Your Payload File.

java.io.IOException: Cannot run program "{runtime.tools.bossac-1.7.0.path}/bossac": CreateProcess error=2, The system cannot find the file specified

Then This Is The Fix For The Error
Goto Tools Scroll To Boards Then Select Board Manager And Type Arduino SAMD Into The Search Bar.

Then Once Installed Click The Close Tab,Now You Can Upload Your Payload File.

Think That Covers Everythig.

Edit..

Updated Payload INO Files These Are Now All In One, So You Enable The Payload You WantTo Use, And Disable The 3 You Don't Want To Use.

the only UF2 d&d files are for the multi payload gemma/trinket and itsybitsy UF2 File has not been tested as of yet as I don't have one to hand.

gemma/trinket and itsybitsy files are for dongle only at moment as.

pad A0 = payload change on gemma and itsybitsy.

pad 1 = payload change on the trinket.

the multi can only have 3 payloads enabled due to flash on the trinket/gemma & itsybitsy flash not being big enough.

red = sxos
white = hekate
blue = ReiNX

demo of the multi payload on my trinket.

demo if multi payload working.

ReiNX
RajNX
SXOS
Hekate 4.0

have revamped ino to all in one code

just enable the payload you wish to use. and disable the other 3.

like in the image sx os is enabled and the others are disabled.

Attachments

• all in one payload ino files.zip

Last edited by M-O-B, Aug 26, 2018, Reason: Updated Files.

• #2

GR8 thx

• #3

Does it work with arduino mini or cheap clones?

• #5

i got my trinket from mouser cost was £6.61p each, but I wouldn't advise buying just 1 unit as the cost of shipping would take it up to around £20.

they do free shipping if you spend £33 or more, I got 5 at cost of £33.05 excluding vat, total price was £39.66p + free shipping took 2 days to be delivered.

eBay & Amazon prices for these trinkets are ridiculous, between £14 to £21 each.

another place for the trinkets is digikey £6.70 excluding vat. also free shipping on orders over £33.

I'm sure other similar devices will work at a lower cost but it's finding the correct size.

for me the trinket mo is ideal for the dongle just coz the size of it, and if a case could be found or made to fit the trinket inside with the battery and TP4056 battery charger module then it can be made to look clean and tidy.

• #6

This is freaken great. I use my phone which works great, but i got like 3 of these trinket laying around from other projects.

Thanks for the infor

• #7

This will work like as XECUTER Dongle to enable CFW on Nintendo SWITCH in RCM MODE?

--------------------- MERGED ---------------------------

This tutorial would work with
"ARDUINO DIGISPARK ATTINY85 USB I2C SPI PWM ADC" ?
Because is more EASY to use in an USB TYPE C OTG Directly on Nintendo SWITCH without USB CABLE or SMARTPHONE or PC too.

• #8

i got my trinket from mouser cost was £6.61p each, but I wouldn't advise buying just 1 unit as the cost of shipping would take it up to around £20.

they do free shipping if you spend £33 or more, I got 5 at cost of £33.05 excluding vat, total price was £39.66p + free shipping took 2 days to be delivered.

eBay & Amazon prices for these trinkets are ridiculous, between £14 to £21 each.

another place for the trinkets is digikey £6.70 excluding vat. also free shipping on orders over £33.

I'm sure other similar devices will work at a lower cost but it's finding the correct size.

for me the trinket mo is ideal for the dongle just coz the size of it, and if a case could be found or made to fit the trinket inside with the battery and TP4056 battery charger module then it can be made to look clean and tidy.

Pimoroni have uk stock desu i think they sell them for £8.50 i was happy to find that out as adafruits shipping here is ridiculous

Last edited by NO_ob, Jun 28, 2018

• #9

Btw some users (like me) need to install "SAMD from arduino" boards

• #10

• #12

Nah. It is good enough (for the nothing which would go thru it).

so can i use it or not

• #14

should i use something thicker for the power lines or will it be fine using that for those aswell as data

• #15

should i use something thicker for the power lines or will it be fine using that for those aswell as data

it should be fine.

• #16

Got this installed works great, I dont think i scraped the enamel off the wire properly on the rcm strap testpad since it doesn't detect volume plus and goto rcm. I dont wanna take the baord back out to fix it though lel, got my switch in autorcm so it boots straight away into hekate. Anyone attempting this i highly recommend to get a heatgun for removing the micro usb port it's pretty tricky to get off i pulled most the pads off for it and was pushing very lightly on it while melting the solder, luckily the two i needed stayed attatched but they did peel off the board

Last edited by NO_ob, Jul 1, 2018

• #17

Thank you for the great tutorial, I can't wait to get mine and wire it up.

• #18

Silly and maybe off topic, can you do this with a Pi board or no?

• #19

Have updated the op with hekate ctcaer 3.0 plus drag an drop files.

• #20

Silly and maybe off topic, can you do this with a Pi board or no?

no i tried getting a stripped pi zero in weeks ago it wont fit desu
